Jenkins
Overview
Jenkins has multiple modes of operation, and each of them require some consideration when installing Earthly. These modes include:
Standalone, dedicated runners
Ephemeral cloud runners
Compatibility
Earthly has been tested with Jenkins in a standalone runner configuration, and using the Docker Cloud provider.
Resources
​Installing Jenkins​
​Docker Cloud Plugin​
​Jenkins Credentials​
Setup (Standalone)
This should not differ in any meaningful way from the steps outlined in the overview.
Setup (Docker Cloud)
Assuming you are following the steps outlined in the overview, here are the additional things you need to configure:
Dependencies
Ensure that the Docker Cloud provider is installed and has a Docker daemon available. The Cloud provider does not provide a daemon.
Installation
You'll need to create your own runner image. Heres an example of what this might look like, when basing your runner off our earthly/earthly image:
1
ARG VERSION=4.9
2
RUN apk add --update --no-cache curl bash git git-lfs openssh-client openssl procps \
3
  && curl --create-dirs -fsSLo /usr/share/jenkins/agent.jar https://repo.jenkins-ci.org/public/org/jenkins-ci/main/remoting/${VERSION}/remoting-${VERSION}.jar \
4
  && chmod 755 /usr/share/jenkins \
5
  && chmod 644 /usr/share/jenkins/agent.jar \
6
  && ln -sf /usr/share/jenkins/agent.jar /usr/share/jenkins/slave.jar \
7
  && apk del curl
Copied!
VERSION is the version of the Jenkins runner to install.
Configuration
Set DOCKER_HOST to point at a Docker daemon. This can easily be passed through by checking "Expose Docker Host" in the runner template configuration.
Additional Notes
earthly misinterprets the Jenkins environment as a terminal. To hide the ANSI color codes, set NO_COLOR to 1.
Example
Note
This example is not production ready, and is intended to showcase configuration needed to get Earthly off the ground. If you run into any issues, or need help, don't hesitate to reach out!
You can find our Jenkins example on GitHub.
To run it yourself, clone the ci-examples repository, and then run (from the root of the repository):
1
earthly ./jenkins+start
Copied!
This will start a local Jenkins server, minimally configured to spawn earthly builds using the Docker cloud plugin.
To run a build in this demo, you will need to configure a build pipeline. To do that, we have an example project with a Jenkinsfile. To configure the build pipeline for the example project:
Open the Jenkins demo by going to http://localhost:8000​
Click "New Item", on the left
Jenkins Dashboard with "New Item" highlighted
Choose "Pipeline", give it a name (we chose "test"), and click "OK".
Setting up a new build named test, configured as a Jenkins pipeline
Scroll down to the "Pipeline" section.
Make the following changes:
Choose "Pipeline script from SCM" for the Definition
Choose "Git" as the SCM, once the option appears
Set the repository URL to https://github.com/earthly/ci-example-project​
Set the branch specifier to */main
Configuring all the SCM options for the build
Once those changes are made, click "Save". Jenkins will navigate to the Pipelines' main page. Once there, click "Build Now"
Jenkins Dashboard for the example build, with "Build Now" highlighted
Find the build in your build history, and watch it go!
Console output in Jenkins from the test build
Notes
If you broke the example environment, you can run earthly ./jenkins+cleanup to clean up before trying to run again from scratch.
TLS
The example purposely runs a Docker-In-Docker (DIND) container without TLS for simplicity. This is not a recommended configuration. Configuring TLS inside Docker.​
To allow the docker client to access a daemon protected with TLS, you will need to add Jenkins credentials. Add the client key, certificate, and the server CA certificate as a credential. In our example, using the Docker Cloud provider, you can add them by choosing "Manage Jenkins", then "Manage Nodes and Clouds", and finally "Configure Clouds". Then, choose the cloud to configure for TLS, and click the "Add" button here:

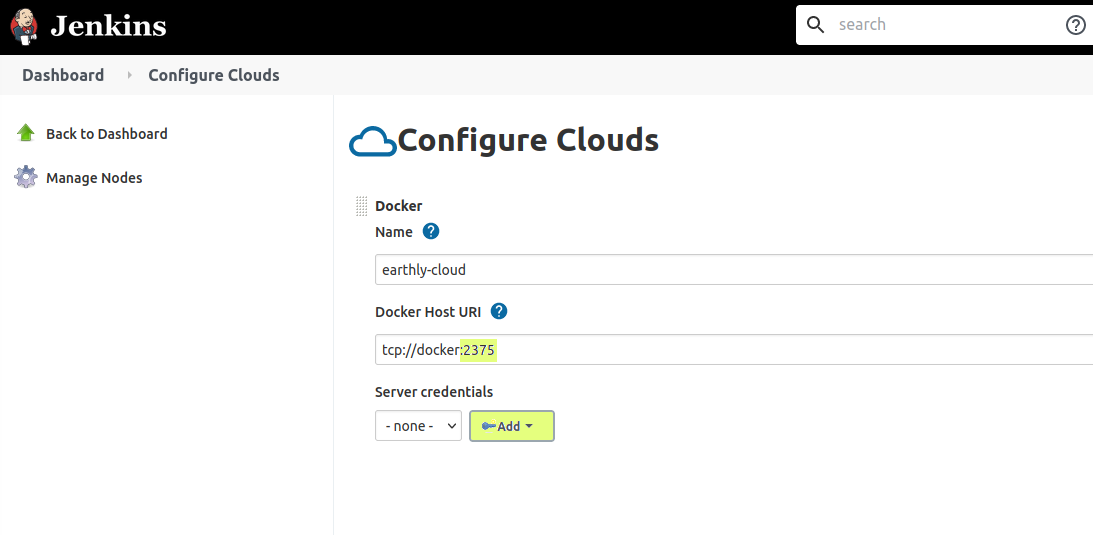

Configuring Docker credentials in Jenkins
Also, ensure that you are using the correct port for TLS. In this image of our example cloud, we are using port 2375, which is traditionally the insecure port for a docker daemon. In a TLS environment, docker expects port 2376.
If you are using an external earthly-buildkitd with Jenkins, you should be using mTLS. You will need to add the keys and certificates used there as credentials too.
